27th July 2026
Do Extendable Levels Stay Accurate When Extended? The Engineering Answer

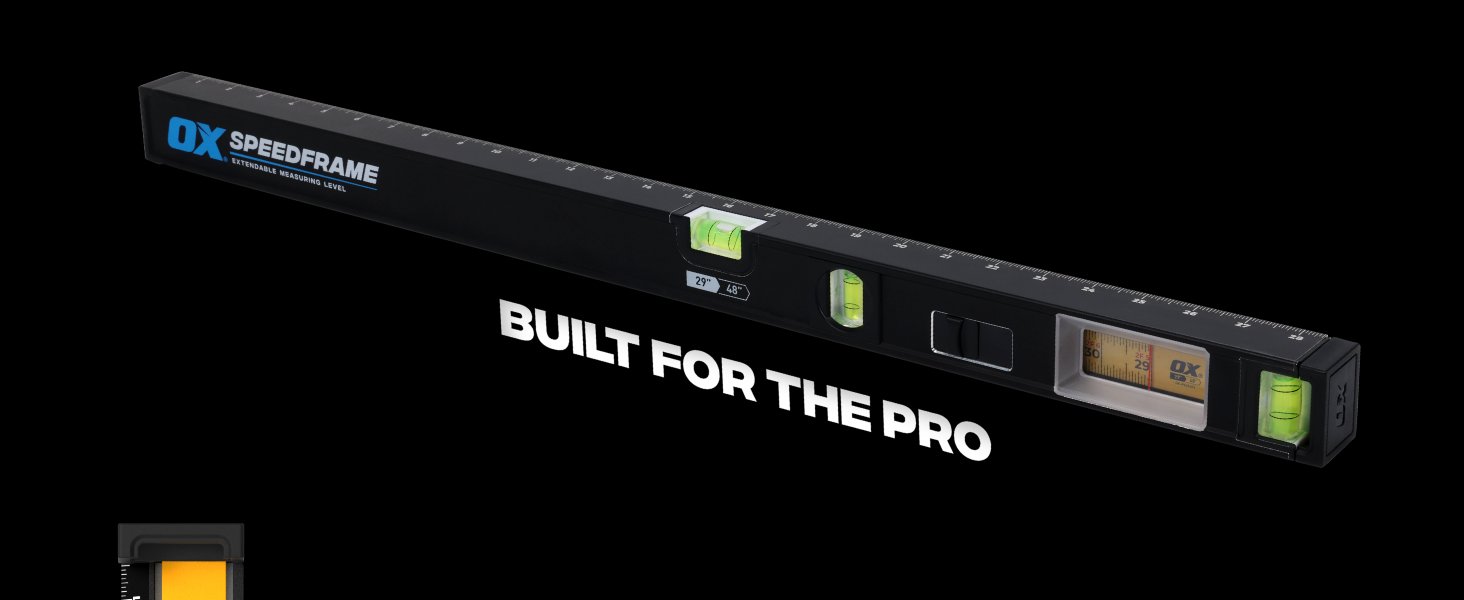

An extendable spirit level only works if it stays accurate at full reach. The OX Pro SPEEDFRAME Extendable Level was designed to solve one of the biggest concerns tradespeople have with extendable levels: maintaining accuracy and stability when extended.
Here’s what affects extendable level accuracy, what to check before buying, and why the locking mechanism, body design and construction quality matter.
An extendable spirit level that loses accuracy when extended does not solve your problem. It is just hiding the problem inside a more expensive tool.
That scepticism is fair. Not every extendable level is built to the same standard. Some are designed mainly for convenience. They extend, they lock, and they look useful on the shelf. But once they are opened to full length, the body may flex, the joint may shift, or the tool may no longer maintain the same level of accuracy it had when collapsed.
For a tradesperson, that matters.
This is why tools like the SPEEDFRAME focus on more than simply adding length. The challenge is not creating a level that extends, it is creating one that remains rigid, stable and reliable when working at full reach.
A level is not there to look straight. It is there to tell the truth. If the tool cannot hold its accuracy at the length you are actually using it, you are better off with a quality fixed level.
So the real question is not whether extendable spirit levels can be accurate. They can be. The better question is whether the specific level you are buying has been engineered to stay accurate at full extension.
What accuracy actually means
Spirit level accuracy is usually shown as a tolerance.
That tolerance tells you how much the tool may deviate from the true level or plumb while still showing a centred bubble. For example, an accuracy rating of 0.5mm/m means the level should not misread by more than half a millimetre over one metre.
For normal site work, that may be more than accurate enough. For tighter installation work, such as doors, windows, cabinetry, framing details and fitted joinery, smaller errors matter more because they can affect the finished result.
With an extendable level, the important detail is not only the tolerance, but also the level itself. It is where that tolerance applies.
A level that is accurate when collapsed is not automatically accurate when extended. The tool has changed length. The load has changed. The extension joint is now part of the measuring surface. That means the accuracy needs to hold across the full working range, not just at the shortest length.
If a product listing gives an accuracy rating but does not say whether that rating applies at full extension, that is worth questioning. The number may still be useful, but it does not tell the whole story.
For an extendable level, the key specification is accuracy at maximum length.
This is particularly important for professional applications where the extra reach of an extendable level is the main advantage. A tool like the SPEEDFRAME is designed for situations where tradespeople need to check longer surfaces, larger openings and wider spans without switching between multiple fixed-length levels.
Why longer tools can flex
The main engineering challenge is deflection.
Any long tool can flex under its own weight if the body is not stiff enough. That applies to fixed levels as well, but extendable levels have an additional challenge because the tool has moving sections.
At short length, the body has more support. At full extension, the span is longer, and the tool must resist bending over a greater distance. Even a small amount of flex can affect the reading, especially when checking long walls, tall openings, or plumb lines where small errors multiply.
This does not mean an extendable level is automatically less accurate. It means the design has to control flex properly.
That is where better engineering makes the difference.
The body profile matters
The shape of the level body is not just about looks.
A stronger profile helps the tool resist bending and twisting. The OX Pro SPEEDFRAME is built around this principle, combining a rigid profile with an extendable design that gives tradespeople additional reach while maintaining the stability needed for accurate readings.
That matters on site. A level needs to be stiff enough to hold a true reading, but still practical enough to carry, position and use all day.
Thin, weak profiles can feel lighter in the hand, but may not provide the same confidence at longer lengths. If the body flexes when extended, the vial may still show a centred bubble while the tool itself is not sitting as true as it should.
A good extendable level needs a body profile that supports accuracy, especially at full reach.
The locking mechanism matters even more
The extension joint is the most important part of an extendable spirit level.
That is where the inner and outer sections meet. If the joint is weak, loose, or only grips at one small point, the extended section can move slightly under pressure. That movement may be tiny, but it's exactly what causes bad readings on precision work.
A better locking mechanism holds the extension firmly and spreads the load across more of the tool. The aim is to make the extended level behave as closely as possible to a single continuous body.
That is the difference between an extendable level that feels solid and one that feels like two tools clipped together.
When checking a long wall, frame, door opening, or window reveal, that stability matters. You do not want the tool shifting while you are trying to confirm whether the work is plumb.
