Extendable Spirit Levels Explained: How They Work, Who They're For
A fixed spirit level is useful, but it is not always the right length for the job.
Sometimes it is too short, which means you have to keep moving it along the work and trusting that each reading line up with the last. Other times, the length you need is so long that it becomes awkward to carry, store, or use in tight spaces.
That is where an extendable spirit level, such as the SPEEDFRAME makes sense.
Instead of carrying several fixed-length levels, an extendable level gives you one tool that adjusts to the work at hand. It can stay shorter for confined spaces, then extend when you need to check a door frame, a stud wall, a partition, or a longer run.
But not all extendable levels are built the same. The mechanism matters. The body matters. Most importantly, the accuracy needs to hold when the level is fully extended.
How an extendable spirit level works
An extendable spirit level uses a telescopic section. One part of the level slides out from the main body, allowing the tool to extend when needed. Once it reaches the required length, it locks into place. Depending on the design, this may be done with a clamp, collar, twist lock or similar mechanism.
A spirit level only works properly if the body stays straight and rigid against the surface being checked. If the level flexes, bows or twists when extended, the reading becomes unreliable. The vial may still look right, but the tool itself may not be sitting true against the work.

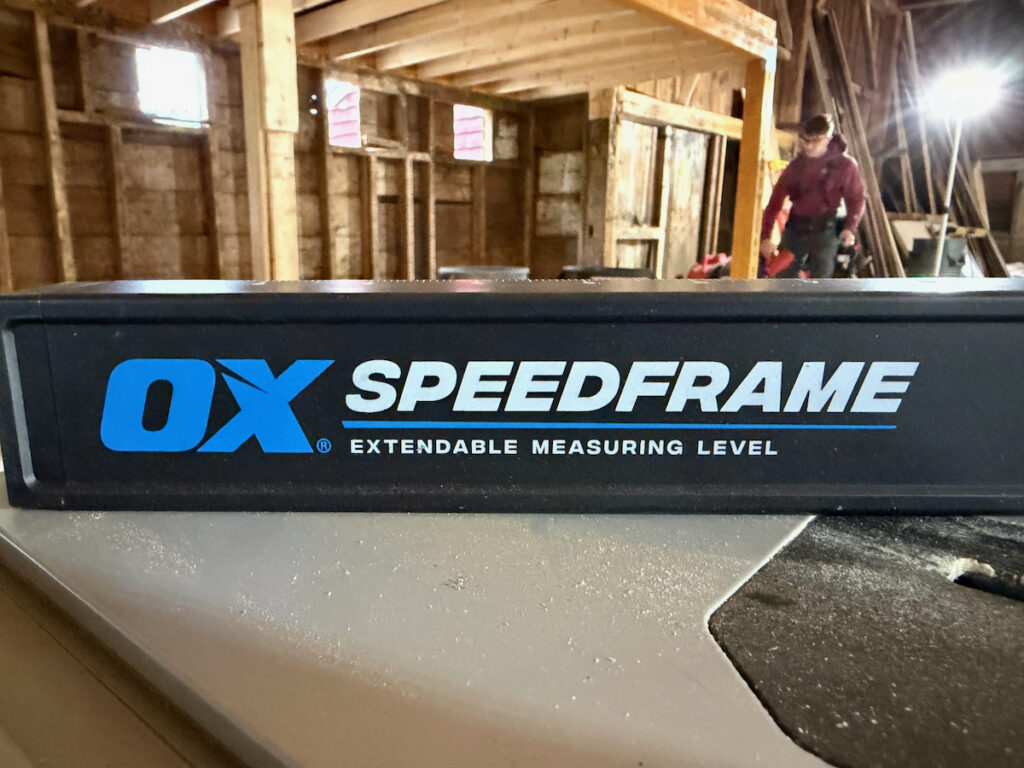

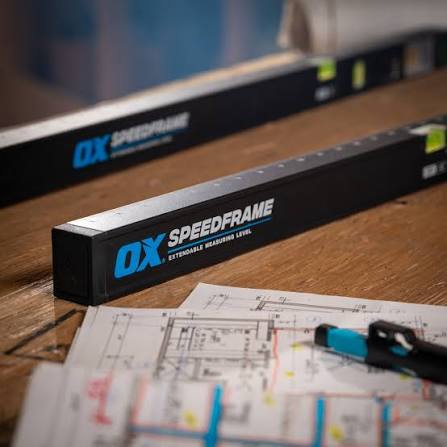

Better extendable levels stay rigid across their full length through stronger body profiles, box-section or I-beam designs, and a locking mechanism that holds the sliding section firmly in place. The OX Pro SPEEDFRAME uses a patented twin-rail extension system specifically designed to eliminate tipping or tilting at any extension point.
OX PRO 14″-22.5″ SPEEDFRAME Extendable Level
OX PRO 29″-48″ SPEEDFRAME Extendable Level
Why full-extension accuracy matters
A level may be accurate when collapsed, but that does not automatically mean it is accurate when fully extended. With an extendable tool, the extended position is often the reason you bought it.
Accuracy is usually shown as a tolerance in millimetres per metre. For general trade use, 0.5mm/m is reasonable. For more precise installation work, 0.3mm/m or better is worth looking for. If the product listing does not confirm that tolerance applies at full extension, check the specification sheet or ask the supplier directly.
Extendable vs fixed-length levels
Fixed levels still have their place. A long fixed level is simple, rigid and dependable, no moving parts, no locks to wear. If you always need the same length and work in open spaces, a fixed level can be the right call.
The problem is practicality. A long fixed level is awkward in a van, difficult in tight spaces, and still only one length. Short fixed levels create the opposite problem. A 600mm or 800mm level is easy to carry, but checking a full-height stud or door frame means moving it several times. Every repositioning is a chance to introduce a small error. Over a longer section, those differences add up.
An extendable level reduces that problem. Use it briefly when space is limited, then extend it when you need a longer reading in one go.
Who should use an extendable spirit level?
For small joinery, tiling or shelving work, a good fixed level may be all you need. But for several trades, an extendable level makes a meaningful difference.
For framers and partition installers, studs typically run between 2.1m and 3m high. A short level does not cover enough of the member to give a reliable reading, while a long fixed level can be difficult to manoeuvre on site. The OX Pro SPEEDFRAME 53″–96″ and 78″–144″ models are built for exactly this, collapsing for transport and extending to accurately cover taller members in a single reading.
For door and window fitters, one clean reading across a full-height jamb is better than two or three shorter ones. The OX Pro SPEEDFRAME 29″–48″ is well-suited here, extending to span a standard door jamb without repositioning. For tighter openings, cabinet spacing, and blocking work, the OX Pro SPEEDFRAME 14″–22.5″ gives you the same rigid precision in a more compact range.
For sole traders and small teams, kit consolidation matters. An extendable level replaces two or three fixed lengths in the van. For renovation contractors, where no two openings are the same, an adjustable tool is the practical answer to inconsistent conditions.
What to check before buying
Accuracy at full extension is the first thing to confirm. Next, check the locking mechanism; it should feel positive and hold firmly under normal site conditions. Lever clamps and twist collars both work when well made; what matters is that the lock does not shift when knocked.
Body profile matters too. Box-section and I-beam profiles resist twist and bow better than lighter, rounded sections, which becomes critical as the length increases. Check vial quality, three vials minimum (one level, two plumb), shock-resistant where possible. Then check the collapsed length. If it does not fit your van shelving or toolbox, it has not solved the transport problem.
The honest answer
An extendable spirit level is not a gimmick. It is a practical answer to a real problem: fixed levels are not always the right length for the job.
For framing, partitioning, door and window fitting, and renovation work, an extendable level reduces repositioning, saves van space, and gives you a longer, more reliable reading when the job calls for it. The value is not just that it gets longer, it is that it stays accurate when it does. Browse the full OX Pro SPEEDFRAME range to find the right extension span for your work.
